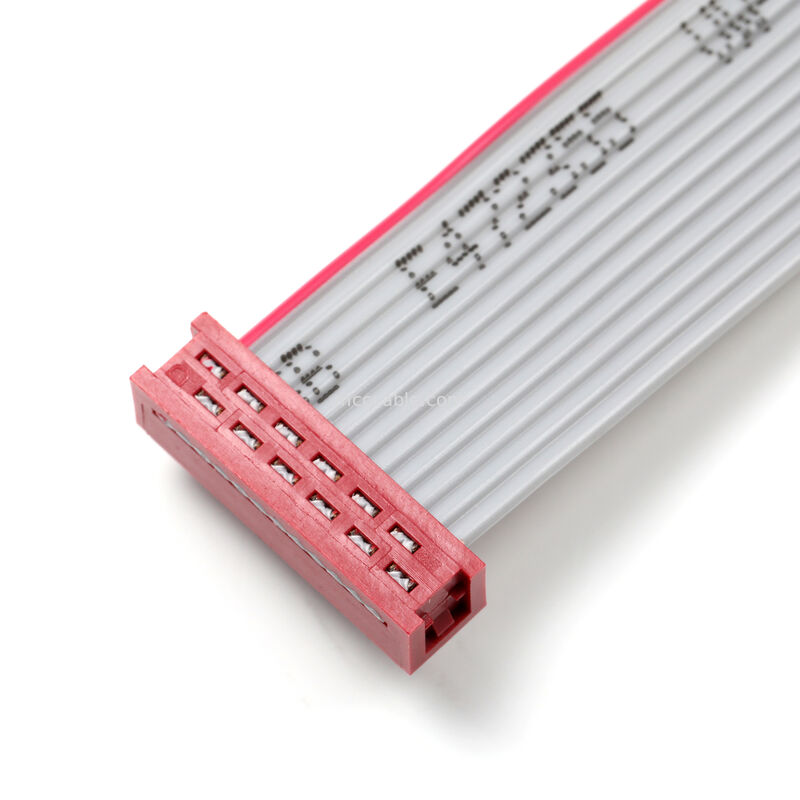

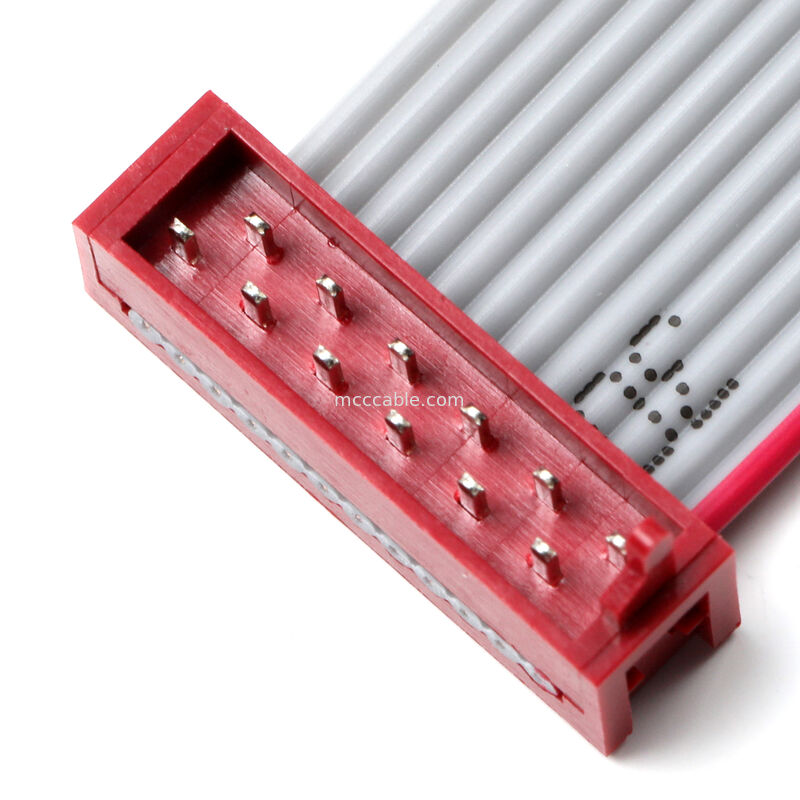

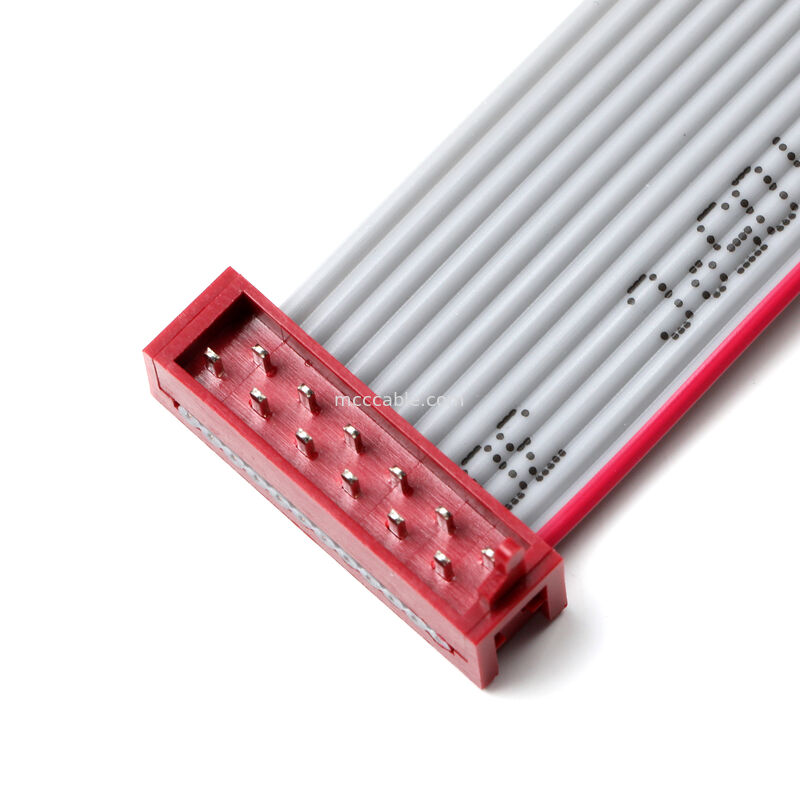

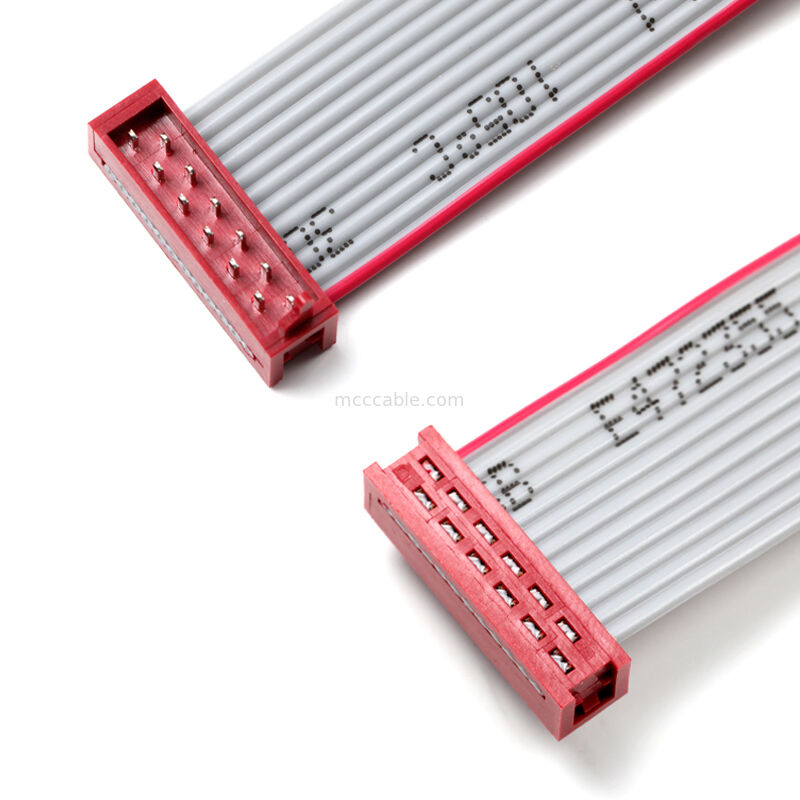

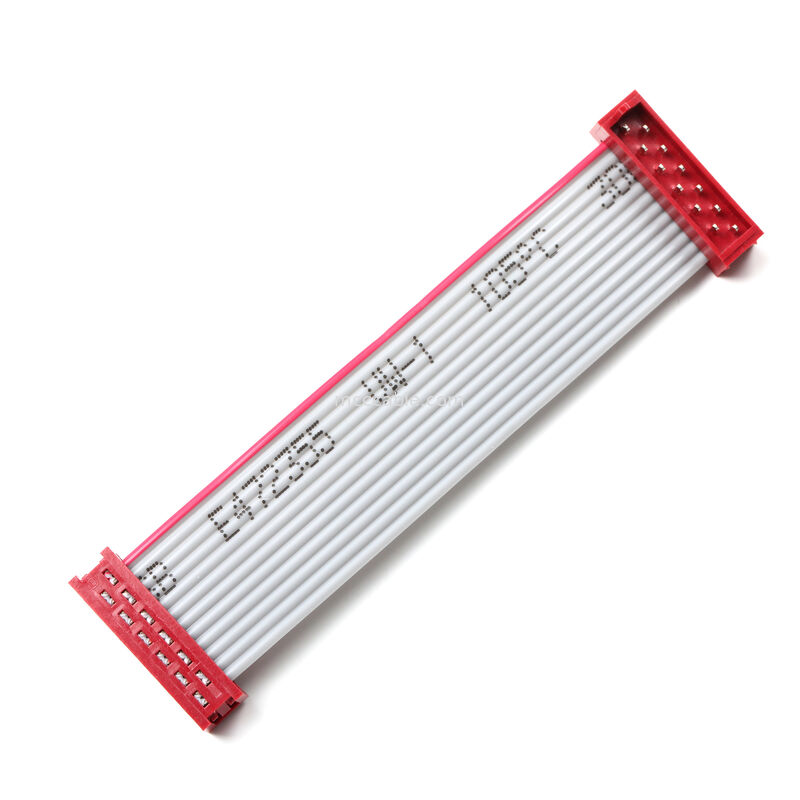

IDC Düz şerit Kablo Düzeneği
IDC Flat Ribbon Cable Assembly – 2.54 mm Dual-Row
Connector, Custom OEM
IDC Flat Ribbon Cable Assembly:
This IDC Flat Ribbon Cable Assembly is a custom OEM interconnect solution designed for
reliable signal transmission in industrial, control, and embedded electronic systems.
The assembly uses a UL2651 flat ribbon cable with dual-row 2.54 mm pitch IDC connectors,
providing a compact and cost-effective board-to-board or board-to-device connection.
Distinctive red-and-gray conductor identification ensures correct orientation during installation
and maintenance.
Cable length, conductor count, connector configuration, and pin assignment are fully
customizable to meet customer-specific system requirements.
Key Features Of IDC Flat Ribbon Cable Assembly:
Flat Ribbon Cable Structure
Parallel conductors enable organized routing and consistent electrical performance.
2.54 mm Dual-Row IDC Connector Interface
Industry-standard pitch suitable for a wide range of control and industrial electronics.
Color-Coded Conductor Identification
Red edge conductor supports quick orientation and error-free installation.
Press-Fit IDC Termination
Insulation-displacement connection ensures stable electrical contact without soldering.
Custom OEM Manufacturing
Designed and produced according to customer drawings and application needs.
Typical Applications Of IDC Flat Ribbon Cable Assembly:
Industrial control systems
Embedded controller boards
Instrumentation and test equipment
Internal wiring for electronic devices
Custom OEM electronic assemblies
Technical Specifications Of IDC Flat Ribbon Cable Assembly:
| Parameter | Description |
|---|---|
| Product Type | IDC Flat Ribbon Cable Assembly |
| Cable Type | UL2651 Flat Ribbon Cable |
| Wire Gauge | 28 AWG |
| Number of Conductors | Custom (example: 10 cores) |
| Cable Pitch | 1.27 mm |
| Connector Type | Dual-row IDC plug connector |
| Connector Pitch | 2.54 mm |
| Connector Positions | Custom (example: 2×5) |
| Cable Length | Custom (example: 70 mm ±2 mm) |
| Rated Voltage | 300 V |
| Operating Temperature | −40 °C to +105 °C |
| Electrical Testing | 100% open / short / intermittence test |
| Insulation Resistance | ≥10 MΩ @ 300 V DC |
| Contact Resistance | ≤1.0 Ω |
| Compliance | RoHS compliant |
| Manufacturing Mode | Custom OEM production |
Customization Options Of IDC Flat Ribbon Cable Assembly:
Cable length and conductor count
Connector position, orientation, and keying
Single-end or dual-end IDC termination
Pinout and signal assignment
Labeling, serialization, and packaging
Engineering support is available from prototype to volume production.
