M23 8-Pin Servo Motor Hibrit Kablo Düzeneği
M23 8-Pin Servo Motor Hybrid Cable Assembly
– Custom OEM Industrial Interconnect
M23 8-Pin Servo Motor Hybrid Cable Assembly:
This M23 8-Pin Servo Motor Hybrid Cable Assembly is a custom OEM solution designed
for industrial servo motor systems requiring integrated power, signal, braking, and thermal
feedback transmission in a single cable.

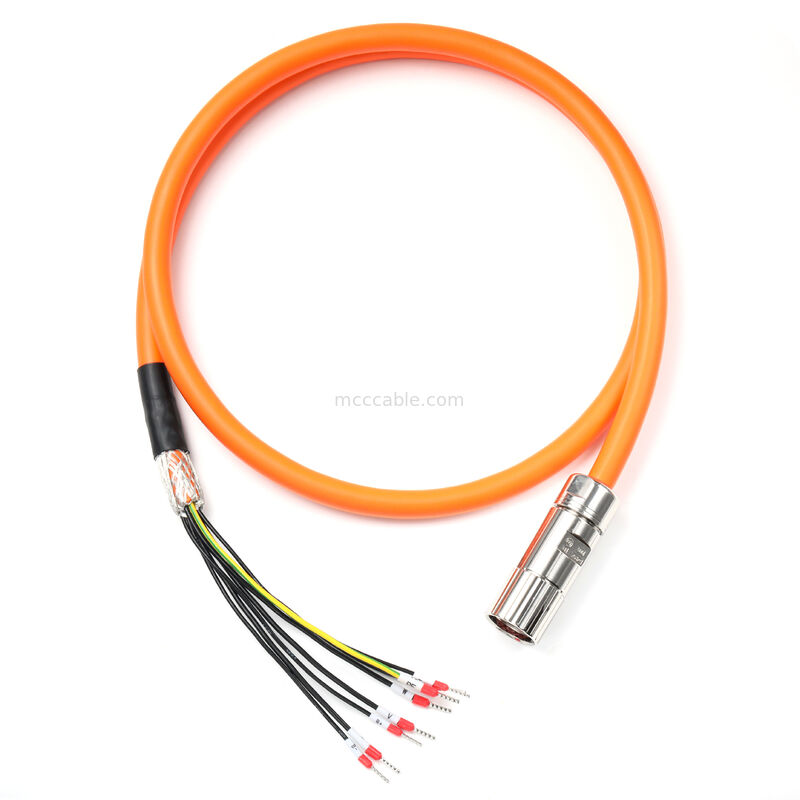

The assembly features an M23 8-pin circular connector (female) with metal housing and
threaded coupling, combined with a shielded multi-core servo motor cable.

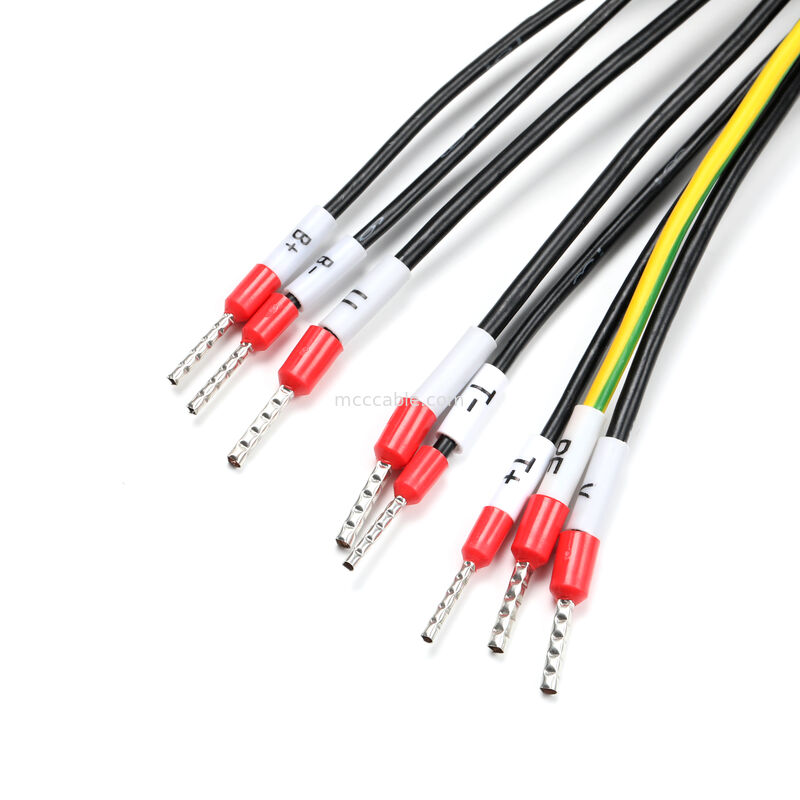

On the open end, individual conductors are clearly identified and terminated, allowing
flexible integration into drive controllers or terminal blocks.
Cable length, conductor configuration, and termination style are fully customizable based
on customer motor specifications and system requirements.
M23 8-Pin Servo Motor Hybrid Cable Assembly – Key Features:
M23 8-Pin circular connector interface
Secure threaded coupling for industrial vibration environments
Hybrid power & signal design
Supports motor phases, brake, thermal sensor, and protective earth

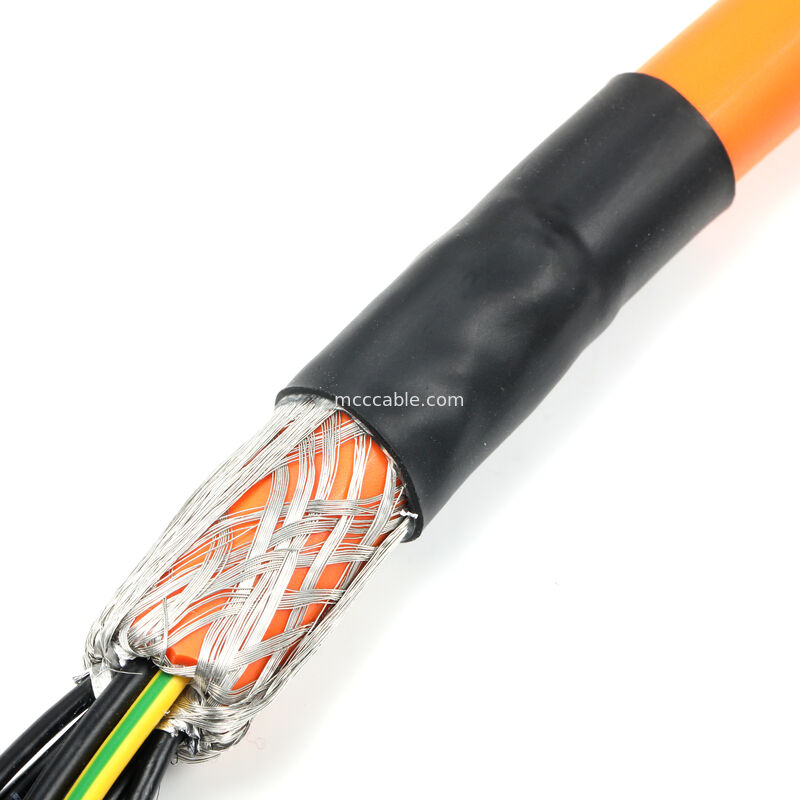

Overall braided shielding with shell grounding
Reduces EMI and ensures stable motor operation
Industrial servo cable construction
Orange outer jacket for clear motor cable identification
Labeled individual conductors
Simplifies installation, maintenance, and troubleshooting
Custom OEM manufacturing
Built strictly according to drawing and motor interface definition
M23 8-Pin Servo Motor Hybrid Cable Assembly – Typical Applications:
Industrial servo motors
Automation and motion control systems
CNC and robotic equipment
Packaging and production machinery
OEM motor and drive assemblies
M23 8-Pin Servo Motor Hybrid Cable Assembly – Technical Specifications:
| Parameter | Description |
|---|---|
| Product Type | Servo Motor Hybrid Cable Assembly |
| Connector Type | M23 Circular Connector |
| Connector Gender | Female |
| Number of Pins | 8 |
| Connector Housing | Metal, threaded coupling |
| Cable Structure | Multi-core shielded servo cable |
| Shielding | Overall braided shield |
| Grounding | Shield connected to connector shell |
| Outer Jacket Color | Orange |
| Termination (Motor Side) | M23 connector |
| Termination (Controller Side) | Open wire, labeled |
| Cable Length | Custom (per drawing) |
| Manufacturing Mode | Custom OEM / ODM |
| Compliance | RoHS compliant |
M23 8-Pin Servo Motor Hybrid Cable Assembly – Pin Assignment:
| M23 Pin | Signal Definition | Identification | Wire Color |
|---|---|---|---|
| 1 | U | U | Black |
| 4 | V | V | Black |
| 3 | W | W | Black |
| 2 | PE (Protective Earth) | PE | Yellow / Green |
| A | Thermal Sensor + | T+ | Black |
| B | Thermal Sensor – | T- | Black |
| C | Brake + | B+ | Black |
| D | Brake – | B- | Black |
| Shell | Shield | Shield | — |
M23 8-Pin Servo Motor Hybrid Cable Assembly – Customization Options:
Cable length and jacket material
Alternative M23 coding or pin configurations
Different conductor cross-sections
End termination: open wire, terminal, or connector
Labeling, marking, and packaging options
Engineering support is available from sample validation to mass production.
Q1. Is it a factory?
A: Yes, we are a factory with more than 16 years of design and manufacturing experience.
Q2. Is there any certification?
A: Yes, we have ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is your specialty?
A: We can design products according to the application requirements.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM and ODM orders. For OEM orders, the MOQ is 100 pcs. For ODM
orders, the MOQ is 1000 pcs. A mold fee will be charged depending on the design.
Q5. How long does it take to complete an order?
A:For small orders and products in stock, preparation and delivery take less than 3 days.
Shipping time depends on the chosen method—fastest 7 days, longest 1 month.For large
orders, material preparation takes 5–21 working days depending on quantity, testing 1–3
working days, and packing 1 day. The fastest lead time is 7 days, and the longest is 25 days,
excluding shipping.
Q6. What additional services can long-term clients get?
A:New products will be offered together with orders, allowing you to test their market potential
and sell them in your district.Additional fee discounts and lower prices for smaller-quantity
purchases.Support with promotional images, including adding your logo.
Q7. How long is the warranty, and how do you protect customers in case of defects?
A: All cables come with a 12–36 month warranty. For large orders, we provide 0.3%–0.5%
extra backup units. For example, ordering 1000 pcs will include 1003 pcs.If you receive more
than 5 faulty pcs and the defect rate is below 0.1%, please contact our sales team with photos.
We will replace the goods in your next order or issue a refund.
Q8. Do you accept free sample orders?
A: Yes, sample orders are supported. Some samples can be provided free of charge (shipping
cost not included).
How to contact us?
Send your inquiry details below and click “Send” now!
Free samples and the best price are waiting for you.
If you cannot find a product on our website, feel free to contact us — even if we don’t produce it,
we can help you source the same item with good quality and price.
